ecom-J2KNpro TECH - mobiles Emissionsmessgerät

EXTREMELY technological. Fully Equipped. Mobile.

ecom-J2KNpro TECH

Mobile Flue Gas Analysis - combination of 5 Measurement Methods

  • Emission analysis in challenging environments
    – extremely robust but also mobile
    – the perfect add-on to a stationary system



  • Free combination of the measurement methods, for each application

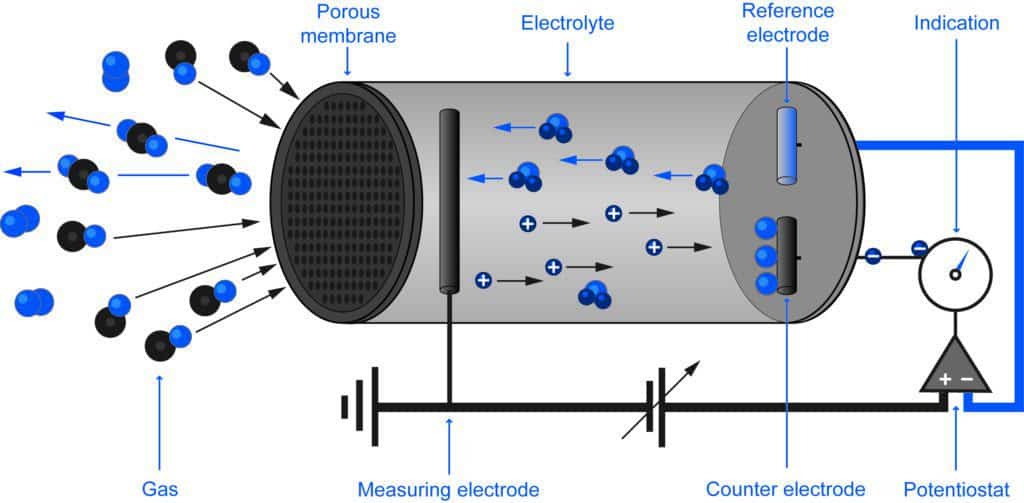

    – cost-effective electrochemical sensors for high measurement ranges
    – physical sensors for maintenance-free and wearless measurements, even if overloaded

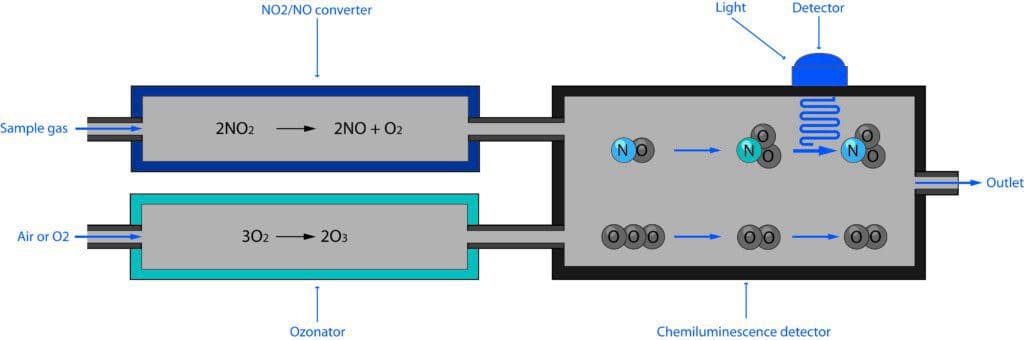

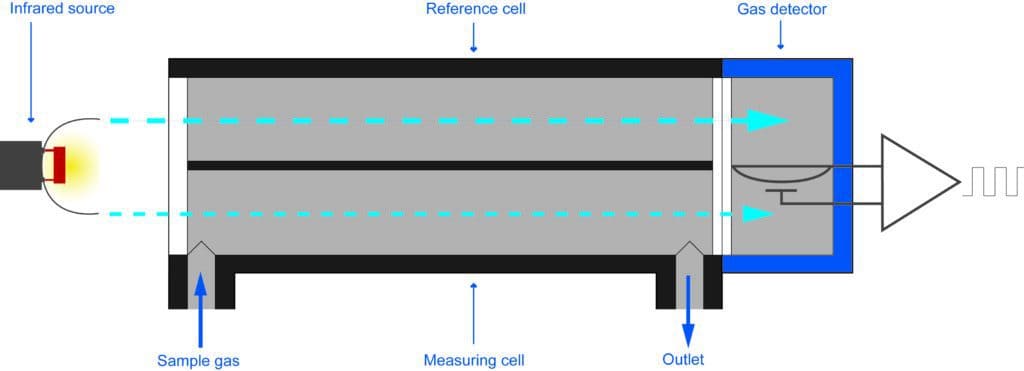

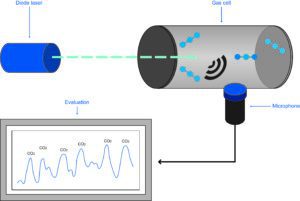

    – compact design: PAS modul, CLD with converter, NDIR



  • Operation with far-reaching radio remote control
    – comfortable control and stable monitoring from the distance



  • Easy transportation in stable aluminium-framed case
    – optional trolley for easied mobility
    – additional case for heated sampling system storage



  • Short controls or continuous measurements
    – ready to use for short and long term measurements
    – high-quality sensors, high-performans sample gas conditioning, reliable filtering, wireless remote control with high coverage and various data output possibilities:
    EVERYTHING integrated in one and the same system



  • O2
  • CO
  • NO
  • NO2
  • SO2
  • H2S
  • H2
  • CO%
  • CO2
  • CxHy
  • CO%
  • SO2
  • CxHy
  • NO
  • NOx
  • NO2

  • For free combinable configuration of required gas sensors (O2 sensor part of the basic delivery scope)
  • Designed for quasi-stationary measurements with programmable measurement intervals
  • Integral thermal quick-printer
  • Internal heating/ventilation cooling depending on ambient conditions (0-40°C ambient temperature)
  • Comprehensive options for data processing (i. a. via WiFi data transfer)
  • Stainless steel gas cooler for perfect, dry gas preparation
  • Electronic condense monitoring as well as automatic condense evacuation
  • Status display for basic functions, settings and warning messages
  • Complete in ultra light-weight, robust aluminium housing
  • T-Room probe/T-Room stick (according to restest or type) in spacious aluminum-framed transport case including trolley
  • Incl. all necessary filters, printer Paper etc. - all filters and consumables  exchangeable by user
  • Free downloadable PC Software

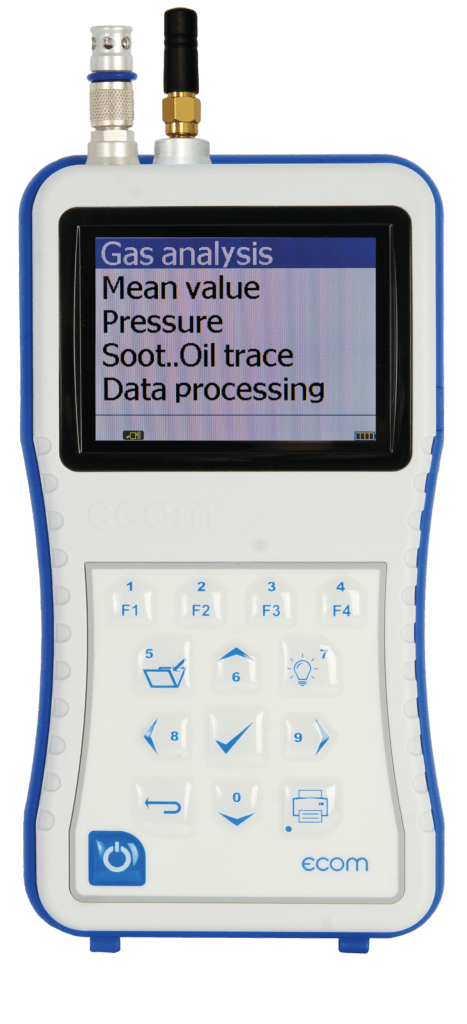

Radio Remote Controller

(included in every standard delivery scope)

  • Large coverage to bridge distances between measurement point (flue gas opening) and adjustment point (e. g. burner, control panel, etc.)
  • Incl. thermocouple inlet, mini USB connection (data transfer to laptop/PC), SD card slot
  • Backlit keypad as well as high-value colour TFT display
  • Display, printout and storage of measurement data
  • Complete instrument operation command (a. o. manual start and end of measurements, data processing, …)
  • Stable data processing via radio (highest possible avoidance of interference, bridging of metal or concrete barriers , automatic connection, no abrupt connection interruption while keeping all measurement data as well as automatic re-connection of radio communication)

Dimensions

  • (L x H x D): 500 x 650 x 250 mm (measurement instrument and heated system on trolley)

Weight

  • Approx. 28 kg (analyser and heated system on trolley)

pruefsiegel_sw

Approved acc. to EN 50379-2 and 1. BImSchV

Data Sheet

Brochure

  • Heated sampling probe incl. PTFE filter and thermocouple for the measurement of flue gas temperature
  • Heated sampling hose for loss-free gas transport (adjustable temperature)
  • Stowage into optional, separate aluminium-framed transport case – integrated into the ecom-J2KNpro-TECH transport system

Heated Sampling System

  • Heated sampling probe incl. PTFE filter and thermocouple for the measurement of flue gas temperature
  • Heated sampling hose for loss-free gas transport (adjustable temperature)
  • Various additional filter options
  • Various temperature probes (contact sensor, surface Sensor, …) for differential temperature measurement (e.g. water-run-in and run-out temperatures)
  • Heat-protective shields

To enlarge, click on the picture.

Note

EXTREMELY precise
EXTREMELY precise
EXTREMELY efficient
EXTREMELY efficient
EXTREMELY robust
EXTREMELY robust
EXTREMELY safe
EXTREMELY safe
EXTREMELY broad reach
EXTREMELY broad reach
EXTREMELY complete
EXTREMELY complete
EXTREMELY lossless
EXTREMELY lossless
EXTREMELY cool
EXTREMELY cool
