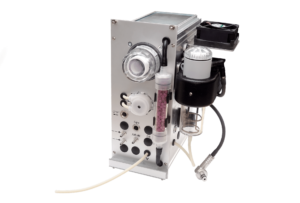

ecom-ST

compact stationary analyser for autonomous and quasi-continous monitoring of gas emissions

  • Remote gas analysis

  • Real time data alert of potential equipment issues

  • Efficiency increase

  • Reduction of fuel consumption

  • Reduction of maintenance costs

  • Minimized labour costs

  • Equipment safety increase

  • Robust modular design

  • O2
  • CO
  • NO
  • NOExtraLow
  • NO2
  • NO2Low
  • SO2
  • SO2Low
  • H2
  • H2S
  • CxH4
  • CO%
  • CO2
  • CxHy

  • Modular construction
  • Programmable measuring cycles per day ranging from 10 minutes (144 measurements/day) up to 65 minutes (22 measurements/day)
  • Gas sampling / fresh air purge monitoring via integrated magnetic valve
  • Standard configuration includes two Longlife sensors (O2 and CO) and can be extended of up to four further sensors.
  • CO sensor over-range protection and fresh air purge without measurement interruption
  • High-performing gas pump for quick gas sampling
  • Powerful gas cooler with electronically monitored condensate trap and automatic moisture removal
  • Backlit keypad and display
  • Data transfer / retrieval via Modbus RTU (RS485) or Modbus TCP (Ethernet)
  • Robust ultra-light aluminium chassis (fits 19" rack) and optional lockable cabinet with glass front door

Dimensions

  • (W x H x D): approx 436 x 265 x 235 mm, incl. rack grips

Weight

  • approx 8,6 kg

pruefsiegel_sw                                         UKCA

Testing according to                   UKCA approved
DIN EN 50379-2 and
1st. BImSchV.

Data sheet

Product flyer

Sensors

The analyser´s base configuration consists of two electrochemical (EC) sensors measuring oxygen (O2) and carbon monoxide (CO) in the sample stream. According to the user´s needs, up to 4 further sensors can be added as per following overview: CO %, CO2, NO, NO ExtraLow, NO2, NO2 Low, SO2, SO2 Low, H2, H2S, CH4, CxHy.

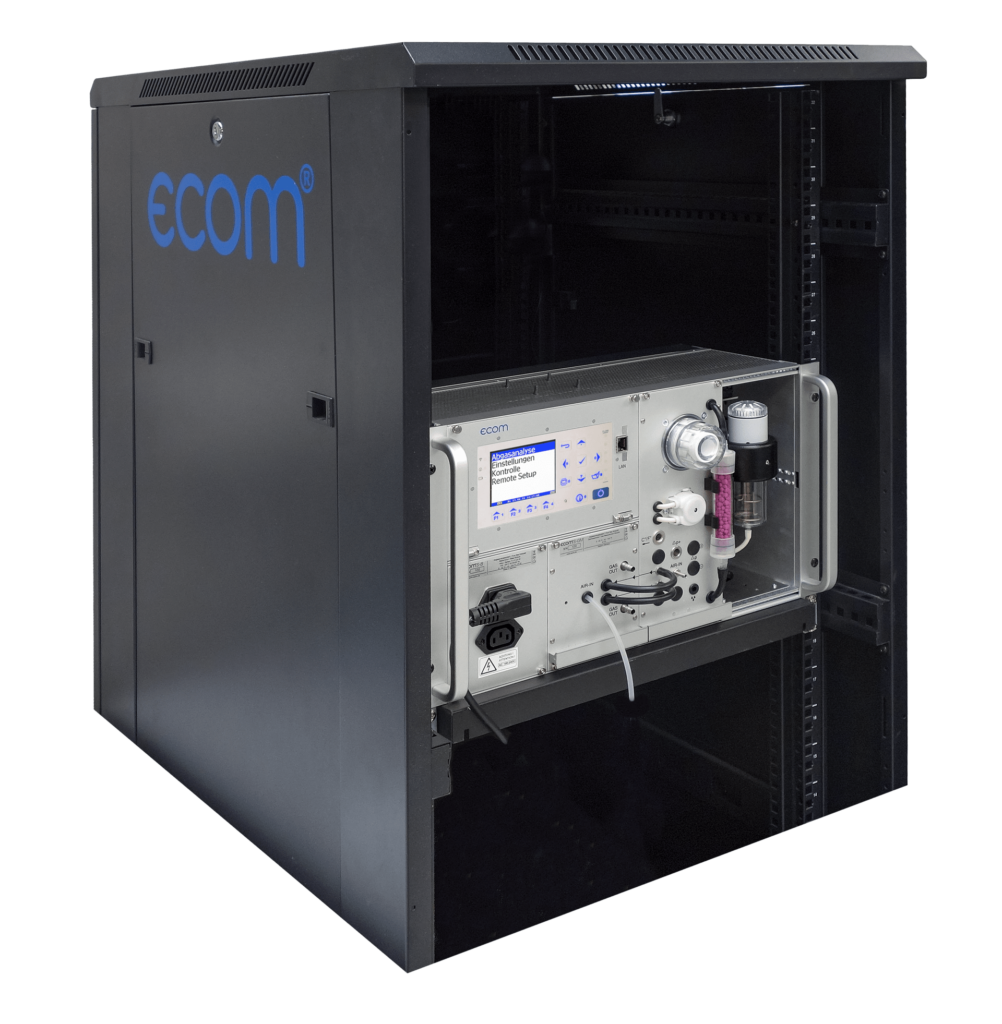

Cabinet

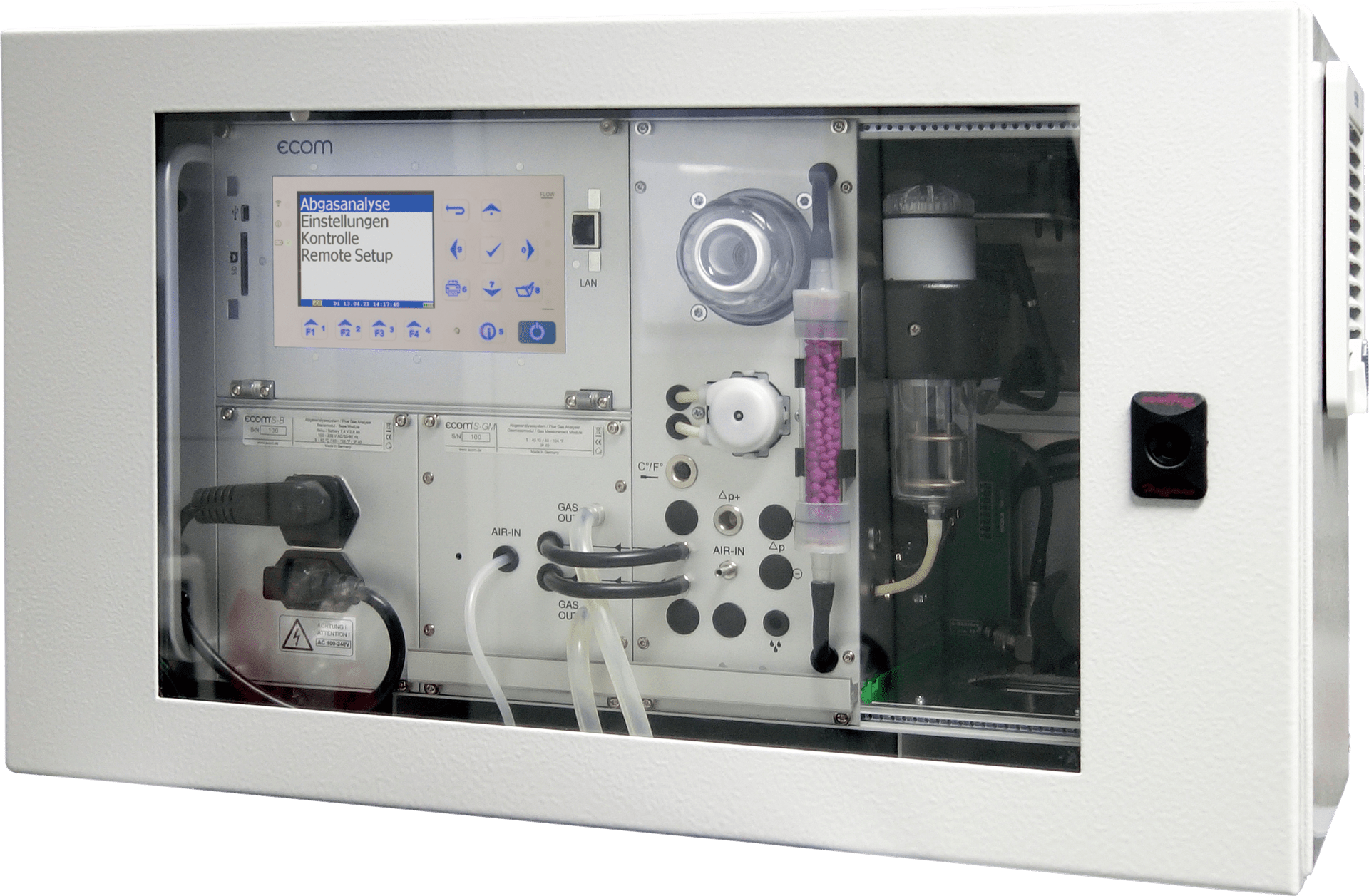

optional lockable cabinet with glass front door

Gas Sampling Systems

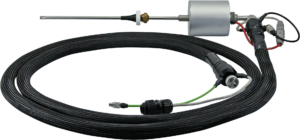

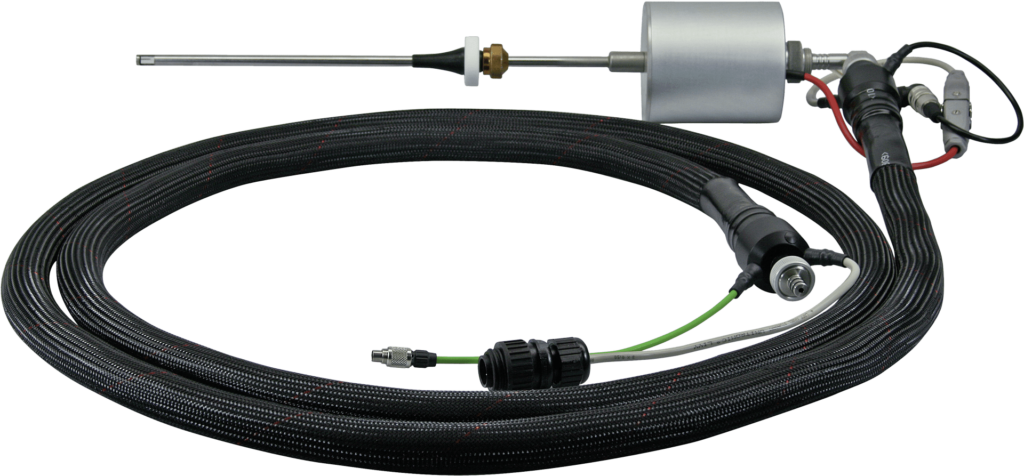

Gas sampling system SBK2

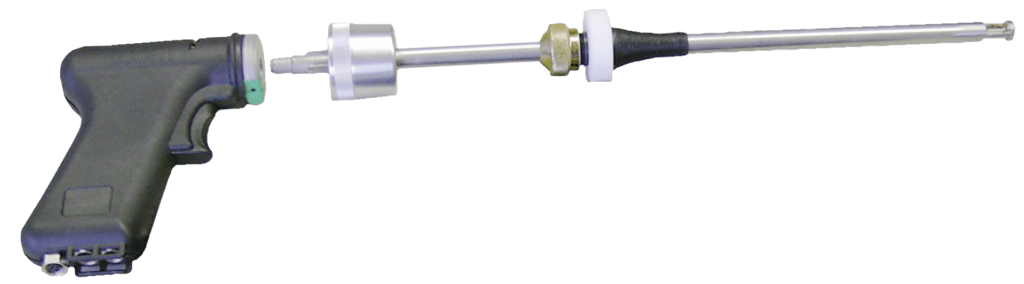

Gas sampling system SU probe

Interfaces

Analog output 8 x 0…20 mA

Used for diverse industrial applications

  • Power Generation
  • Facility Management
  • Food Production
  • Pulp & Paper
  • Mining
  • Oil & Gas

Common combustion sources

emissions monitoring on a variety of equipment

  • Boilers
  • Engines
  • Gas Turbines
  • Ovens
  • Furnaces
  • Kilns
  • Incinerators
