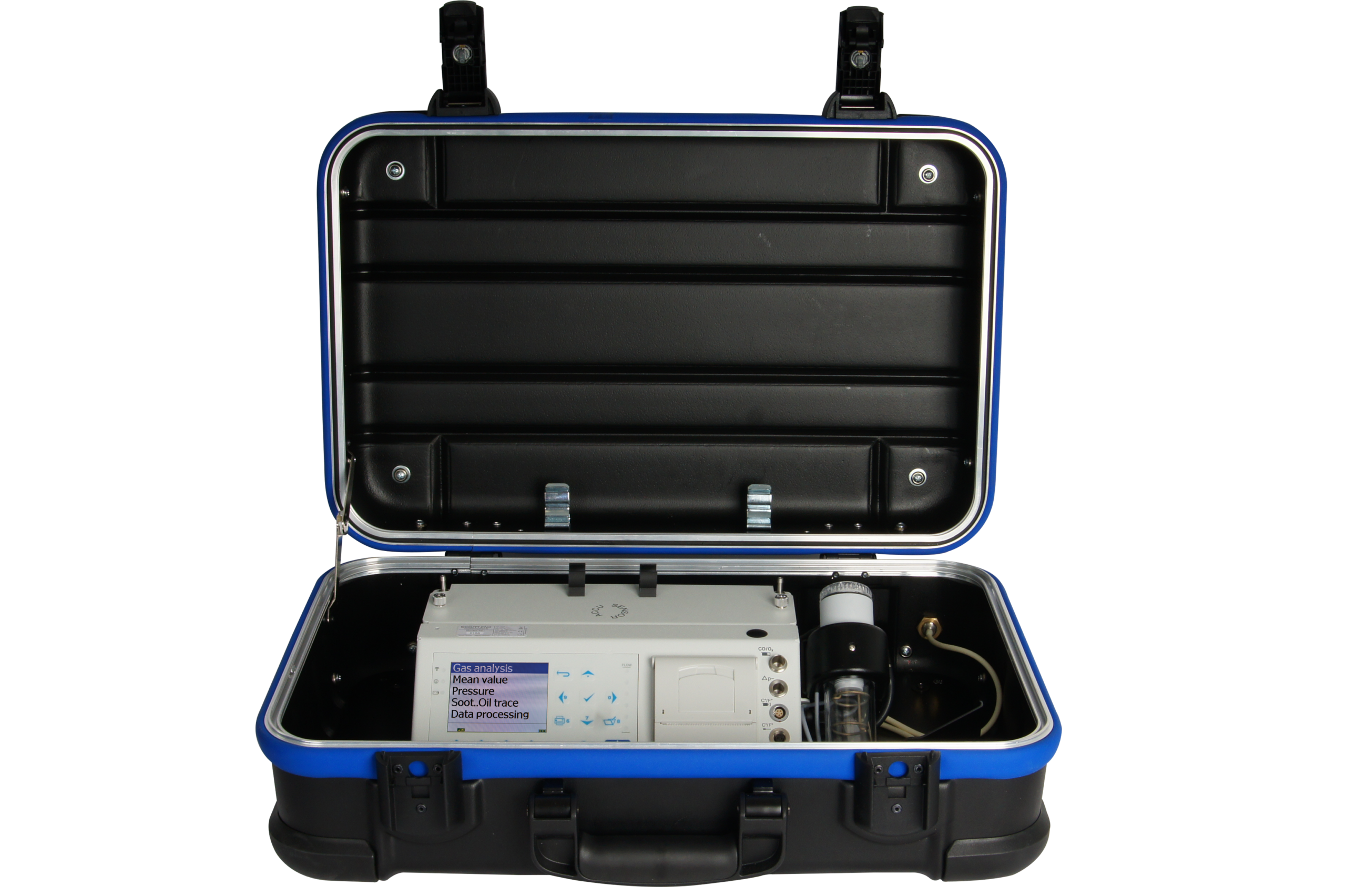

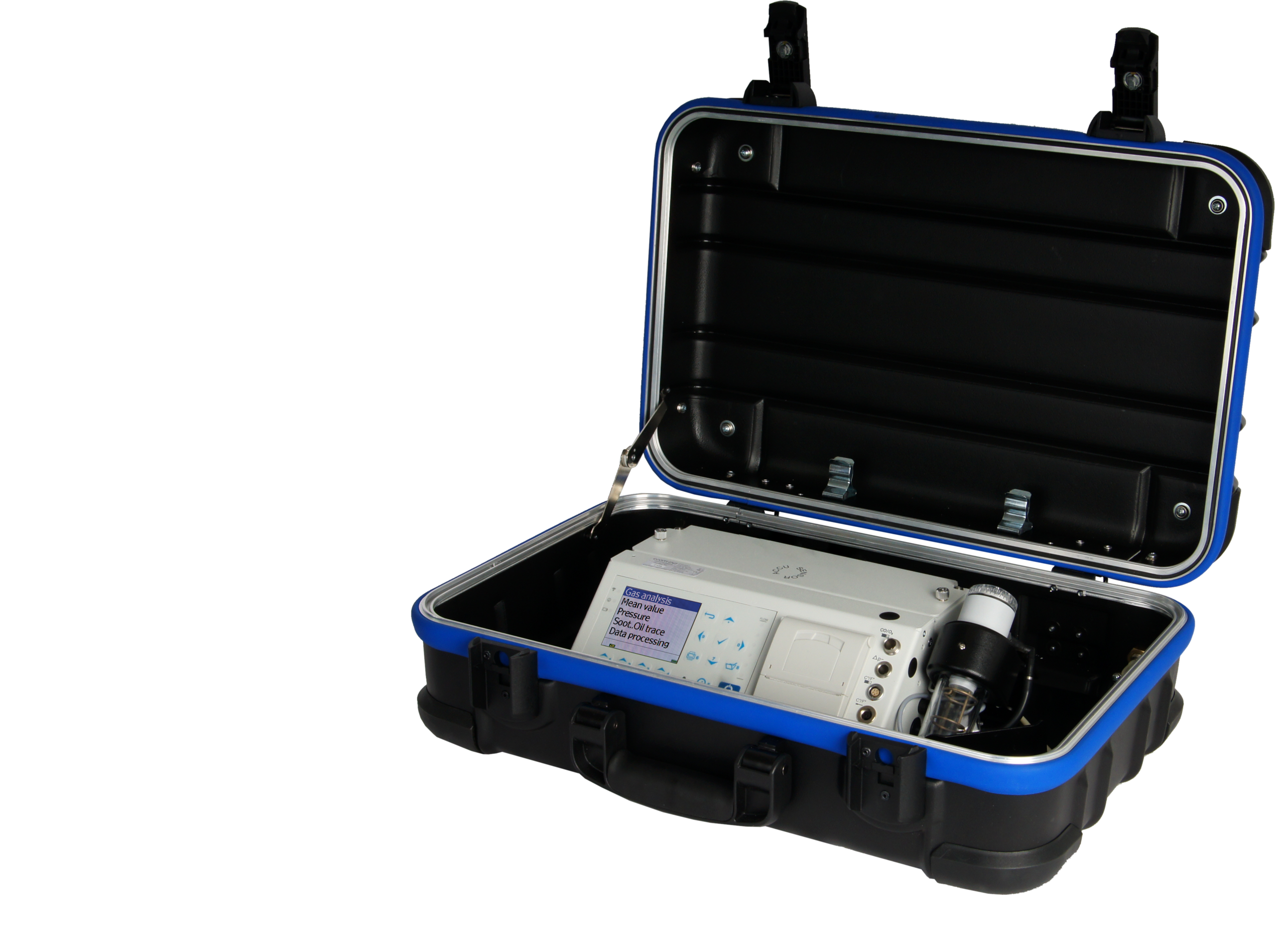

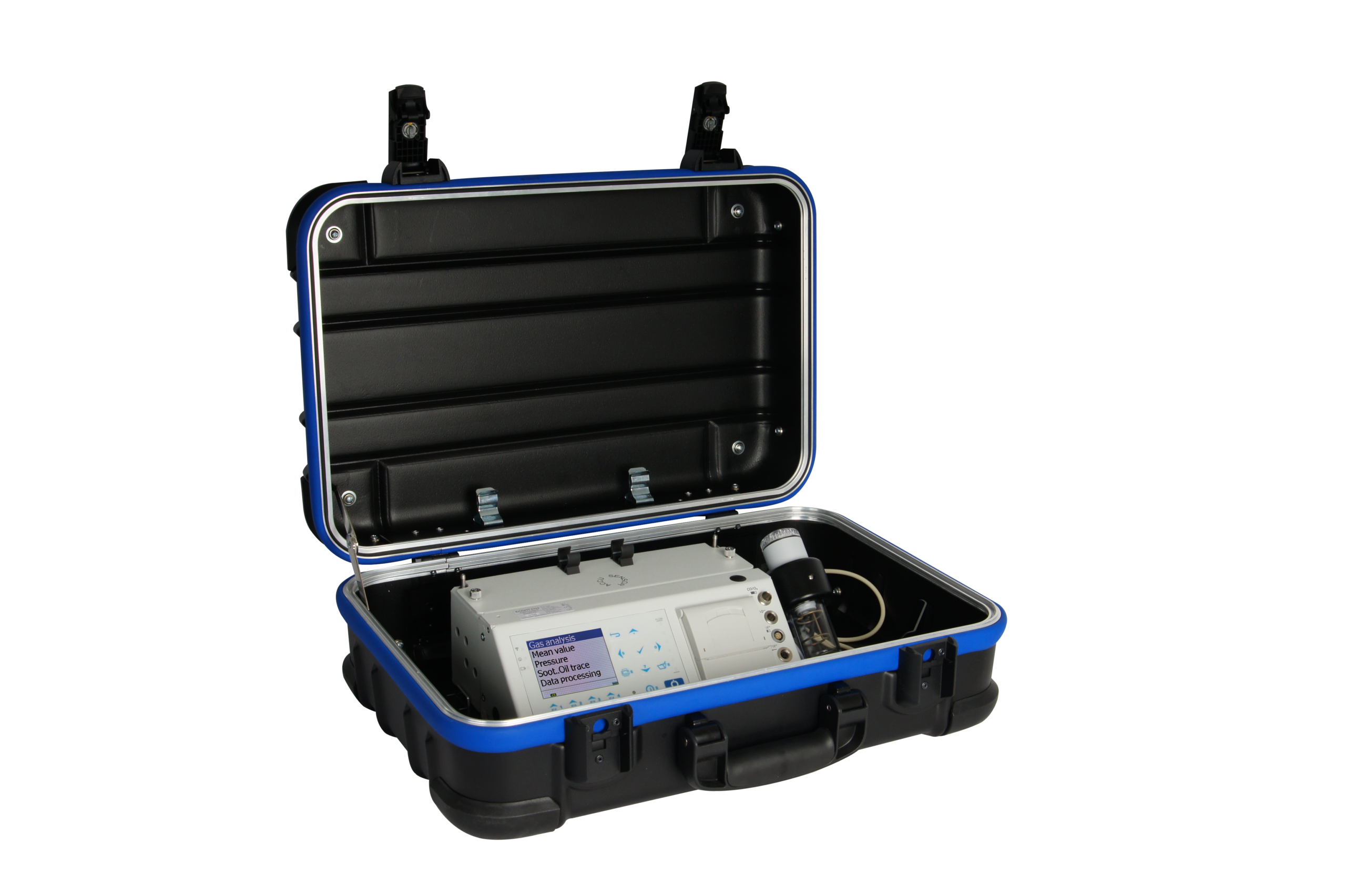

Maximum flexibility in a flight-ready case

The ecom-EN3-F expands the proven EN3 platform with a wide variety of sensors and modular application possibilities. Developed for professional users in heating construction, industry, engine and process plants, it combines precise measurement technology, robust construction and modern data communication, compactly integrated into a flight-ready hard-shell case.

Whether for classic flue gas analysis, industrial emission measurements or special gas applications: the ecom-EN3-F adapts to the task. Tested according to EN 50379-2 and 1st BImSchV.

O₂

NO₂

SO₂

H₂S

H₂

CO%

CO₂

CH₄

CₓHᵧ

Basis EC Opt. EC Opt. NDIR Opt. Pellistor

max.

6 Gas options

Order directly online

Order accessories

Request product

Basic version ecom-EN3-F -
Powerful. Customizable.

The ecom-EN3-F forms the flexible basis for various measurement requirements. Equipped as standard with O₂ / CO (H₂-compensated), the device can be expanded with up to six sensors, depending on the field of application.

The large color display ensures an optimal overview, the menu navigation is logically structured and the measurement starts in just a few seconds. The integrated printer enables direct documentation of the results on-site.

Options

NO_x calculation via NO measured value or NO_x measurement possible
Integrated soot measurement via heated sampling probe
Higher resolution and accuracy in the NO_Low (0 – 300 ppm) or NO_{2 Low} (0 – 100 ppm) range
Additional sensor options (SO₂, H₂S, H₂, CO%)
CO₂ direct measurement and C_xH_y measurement (calibrated to methane) with infrared measurement (NDIR measurement method)
ecom remote control for the flue gas analyser for reading, printing, saving, and manual shutdown of the CO sensor

ecom-EN3-F ^Expert –
For demanding industrial measurement tasks

The Expert variant is aimed at users who regularly perform complex emission and adjustment work. It combines advanced sensors with powerful gas conditioning and extensive documentation options.

Options

Typical features of the Expert version:

O₂ / CO / NO / NO₂ as standard
Electronic sample gas cooler with condensate monitoring
Integrated high-speed thermal printer
Internal data memory & wireless data transfer
Robust hard-shell transport case

Ideal for industrial combustion plants, process monitoring and demanding emission tests.

ecom-EN3-F ^Engine –
For engine and CHP analysis

The Engine variant is specifically designed for measurements on combined heat and power plants, generators and engine systems. Sensors, gas conditioning and probes are designed for high flue gas temperatures and dynamic load conditions.

Options

Special features of the Engine version:

O₂ / CO / NO / NO₂ as standard
Robust sample probe with mini heat protection shield
Electronic sample gas cooler
Integrated high-speed thermal printer
Memory & wireless data transfer
Stable transport case for mobile use

Perfect for service, maintenance and optimization of engine and CHP systems.

Biogas option

The biogas option expands the Engine variant with CH₄ (methane) and H₂S sensors. It is ideal for applications in biogas plants, fermenters or gas engines where raw gas analysis and safety are critical.

Options

Typical Applications:

Biogas plants
Landfill gas analysis
Gas conditioning
Safety monitoring for H₂S exposure

Direct contact.
Clear Solution

We provide personal support and develop tailored solutions for your needs.

We are happy to advise you

+49 2371 945-5

ecom GmbH
Am Großen Teich 2
D-58640 Iserlohn

Why choose ecom
devices?

Climatic chamber adjustment

The measurement accuracy of gas sensors (CO, NO, SO2) is determined and adjusted at 5, 20, and 40°C in the climatic chamber using standardized test gases. Overpressure and underpressure are balanced in the flue gas analyser in specially developed gas channels.

Completely ready for measurement

ecom devices are delivered completely ready for measurement with probe, tubing and extensive connection accessories. Includes consumables for the initial period of use for an immediate start without additional effort.

CO overload protection

The automatic CO shutdown with integrated fresh air purging reliably protects the CO sensor from overload, even without interrupting other measurement parameters. This ensures precise results and a significantly longer sensor lifespan.

Additional sensor option

The ecom-EN3-F can be individually combined with up to 6 gas options and enables the simultaneous measurement of different gases in just one device. The flexible sensor configuration ensures maximum adaptability for a wide variety of measurement tasks and applications.

Large sample gas pump

The particularly powerful sample gas pump delivers up to 2.6 l/min, making it one of the strongest in its device class. Compared to conventional devices, this corresponds to up to five times higher flow rate, for fast, stable and precise measurement results.

Electronic condensate monitoring

Electronic condensate monitoring detects accumulating condensate early and reliably protects the device from moisture. If the condensate volume is too high, the measurement is automatically shut down for maximum operational safety and consistently precise measurement results.

Sample gas cooler

The integrated sample gas cooler continuously cools the sample gas to 5 °C and ensures controlled drying. This prevents water-soluble gases from being washed out and reliably protects sensitive sensors for precise and stable measurement results.

Automatic condensate drainage

Automatic condensate drainage ensures trouble-free operation by autonomously discharging accumulating condensate. This reduces maintenance effort, prevents measurement errors and ensures consistently precise results.

Simple operation

The intuitive menu navigation enables fast and safe operation right from the first use. Clear structures, logically organized menus and a clear user interface ensure efficient work without long training periods.

Integrated printer

The integrated printer allows for direct printing of measurement results on-site. This saves time, ensures complete documentation and eliminates the need for additional devices.

Wireless data transfer WiFi or BLE

Wireless data transfer enables fast and reliable transmission of measurement data without additional cabling. With the free ecomMANDER App, devices can be conveniently controlled remotely and measurement values displayed in real-time on a smartphone or tablet. This provides greater flexibility in use and efficient processing of results.

Lightweight construction & transport protection

The ultra-light aluminum housing ensures maximum mobility and high robustness in everyday work. In combination with a hard-shell transport case, the device is optimally protected and can be transported safely and comfortably at any time.

Simple digital exhaust gas analysis

At ecom, we combine precise measurement technology with intelligent software. Digitalization in the trades requires solutions that are wireless, secure, and above all intuitive. With the ecomMANDER app, your smartphone becomes the central hub for all measurement data. From simple connection setup to live display of values and paperless documentation.

Learn More

Our service promise

Your measuring device is your most important tool – when it fails, it costs time, money and frustration. Thanks to the many years of experience of ecom’s internationally based customer service team, users worldwide benefit from first-class service, short processing times and measurement accuracy of the highest standard.

Learn More

Technical specifications

With O₂/CO (H₂ comp.)/ NO / NO₂ long-life sensors
Automatic CO switch-offand purging (without interrupting the measurement)
Sample gas cooler including electronic condensate monitoring and automatic condensate drainage
With high-quality sampling probe including thermocouple, cone and high-quality 3-chamber tubing
Low-maintenance high-performance gas pump (2.6 liters/minute)
T-room sensor
Integrated high-speed thermal printer
TFT color display
LED flow indicator
Powerful lithium-ion battery
Wireless data transfer (e.g. to a smartphone or tablet)
Ultra-light aluminum housing in a spacious hard-shell transport case
Manual, calibration certificate – created after 100% sensor calibration in a climatic chamber
ecom service package (including free PC software)
