Precise emissions measurement with UV technology in a compact format

The ecom-EN3 ^Tech brings industrial measurement technology into a compact system. Developed for demanding industrial applications, it enables precise emissions measurements even at very low concentrations – directly on-site without complex laboratory technology.

The focus is clearly on one thing: exact NO_x and SO₂ measurements under real operating conditions.

O₂

NO₂

SO₂

Basis EC Basis NDUV

max.

5 Gas options

Order accessories

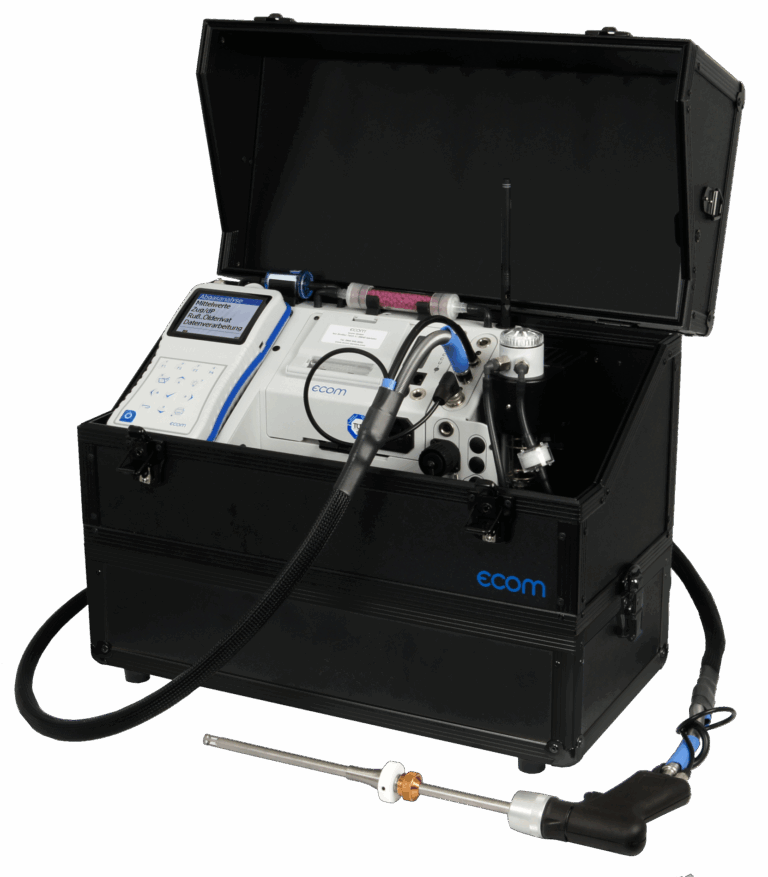

ecom-EN3 Tech -
A device that measures where others fall short

Thanks to its UV-based measurement technology, the ecom-EN3 ^Tech stands out clearly from traditional flue gas analysers. Especially at low NO_x and SO₂ concentrations, the device delivers stable and reliable readings, unaffected by cross-sensitivity to other gases.

This makes it the ideal solution for modern industrial combustion systems, where increasingly stringent emission limits must be met.

Options

Heated sampling system consisting of a heated tubing, a heated head with a thermocouple (0–500 °C) and an integrated hot gas filter for loss-free analysis of water-soluble NO₂ / SO₂ components, as well as dust particle filtration during long-term measurements.
Sampling system consisting of a special hose with a Teflon core for loss-free transport of water-soluble NO₂ / SO₂ components and a pistol grip probe with a high-temperature probe tip including thermocouple (0-1100 °C).

Direct contact.
Clear Solution

We provide personal support and develop tailored solutions for your needs.

We are happy to advise you

+49 2371 945-5

ecom GmbH
Am Großen Teich 2
D-58640 Iserlohn

Why choose ecom
devices?

Climate chamber calibration

The measurement accuracy of gas sensors (CO, NO, SO2) is determined and adjusted at 5, 20, and 40°C in a climate chamber using standardized test gases. Overpressure and underpressure in the flue gas analysis device are compensated in specially developed gas channels.

CO overload protection

The automatic CO shutdown with integrated fresh air purging reliably protects the CO sensor from overload, even without interrupting other measurement parameters. This ensures precise results and a significantly longer sensor lifespan.

Pre-heating function

Thanks to the integrated pre-heating function, the system is ready for use shortly after switching on. This means all important functions are reliably available directly at the point of use, without long waiting times due to heating phases. This ensures a faster start to work, optimized processes in daily use and a significant reduction in overall operating time.

Large sample gas pump

The particularly powerful sample gas pump delivers up to 2.6 l/min, making it one of the strongest in its device class. Compared to conventional devices, this corresponds to up to five times higher flow rate, for fast, stable and precise measurement results.

Electronic condensate monitoring

Electronic condensate monitoring detects accumulating condensate early and reliably protects the device from moisture. If the condensate volume is too high, the measurement is automatically shut down for maximum operational safety and consistently precise measurement results.

Sample gas cooler

The integrated sample gas cooler continuously cools the sample gas to 5 °C and ensures controlled drying. This prevents water-soluble gases from being washed out and reliably protects sensitive sensors for precise and stable measurement results.

Automatic condensate drainage

Automatic condensate drainage ensures trouble-free operation by autonomously discharging accumulating condensate. This reduces maintenance effort, prevents measurement errors and ensures consistently precise results.

Easy operation

The intuitive menu navigation enables quick and safe operation right from the first use. Clear structures, logically designed menus and a clear user interface ensure efficient work without extensive training.

Integrated printer

The integrated printer allows for direct printing of measurement results on-site. This saves time, ensures complete documentation and eliminates the need for additional devices.

Wireless data transfer WiFi or BLE

Wireless data transfer enables fast and reliable transmission of measurement data without additional cabling. With the free ecomMANDER App, devices can be conveniently controlled remotely and measurement values displayed in real-time on a smartphone or tablet. This provides greater flexibility in use and efficient processing of results.

Lightweight design & transport protection

The ultra-light aluminum housing ensures maximum mobility and high robustness in daily work. In combination with a backpack case, the device is optimally protected and can be transported safely and comfortably on the back at all times.

Simple digital exhaust gas analysis

At ecom, we combine precise measurement technology with intelligent software. Digitalization in the trades requires solutions that are wireless, secure, and above all intuitive. With the ecomMANDER app, your smartphone becomes the central hub for all measurement data. From simple connection setup to live display of values and paperless documentation.

Learn More

Our service promise

Your measuring device is your most important tool – when it fails, it costs time, money and frustration. Thanks to the many years of experience of ecom’s internationally based customer service team, users worldwide benefit from first-class service, short processing times and measurement accuracy of the highest standard.

Learn More

Technical specifications

With O₂/ CO (H₂ comp.) longlife sensors and UV module for NO / NO₂ / SO₂

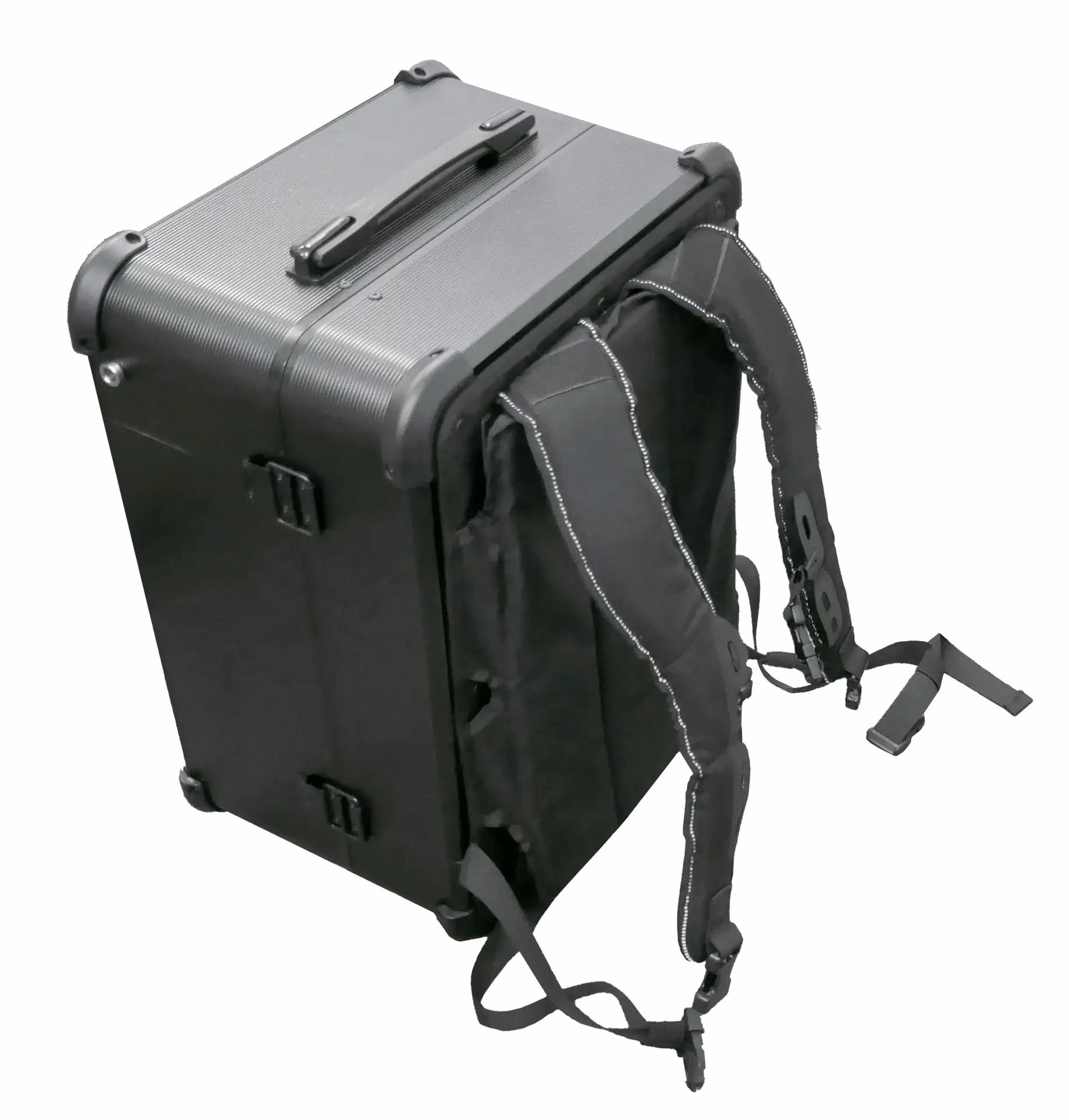

Made of ultra-light aluminum, fitted in a backpack case with practical shoulder straps
CO overload protection and purging without interrupting measurement of other parameters
Sample gas cooler incl. electronically monitored condensate trap with automatic drainage
Powerful lithium-ion battery
Low-maintenance high-performance measuring gas pump (2.2 liters/minute)
LED flow indicator
TFT color display and backlit keyboard
Integrated thermal quick printer
Wireless data transfer (e.g., to a smartphone or tablet)
T-room stick
Charging cable
Calibration certificate – created after 100% sensor calibration in the climate chamber
ecom service package (incl. free PC software)
